The right question is not simply “Can this be made on a five-axis machine?” It is “Which route fits this geometry, inspection requirement and order quantity?” Send your model and drawing. We can start there, without asking you to specify a machine first.
Compare 3-axis, 3+2 and 5-axis
Linear movement machines features from a fixed tool orientation. Accessible pockets, faces and profiles may not need a multi-axis route.[1]
Start here for: open features that can be reached in straightforward setups.The rotary axes set an angle and stay fixed during the cutting operation. The machine can then index to another orientation for the next set of features.[2]
Discuss for: angled holes, side features and multi-face parts.Coordinated linear and rotary movement allows the tool orientation to change while machining a contour. It is different from simply indexing between faces.[1]
Discuss for: complex contours, changing access and sculpted geometry.Clamped faces, inaccessible areas or later finishing steps may still need another operation. The quotation should describe the agreed scope—not just list “5-axis.”
Choose a starting point to carry into your inquiry. This is not an automated manufacturability assessment.
No challenge selected. A model and matching drawing are enough to start.

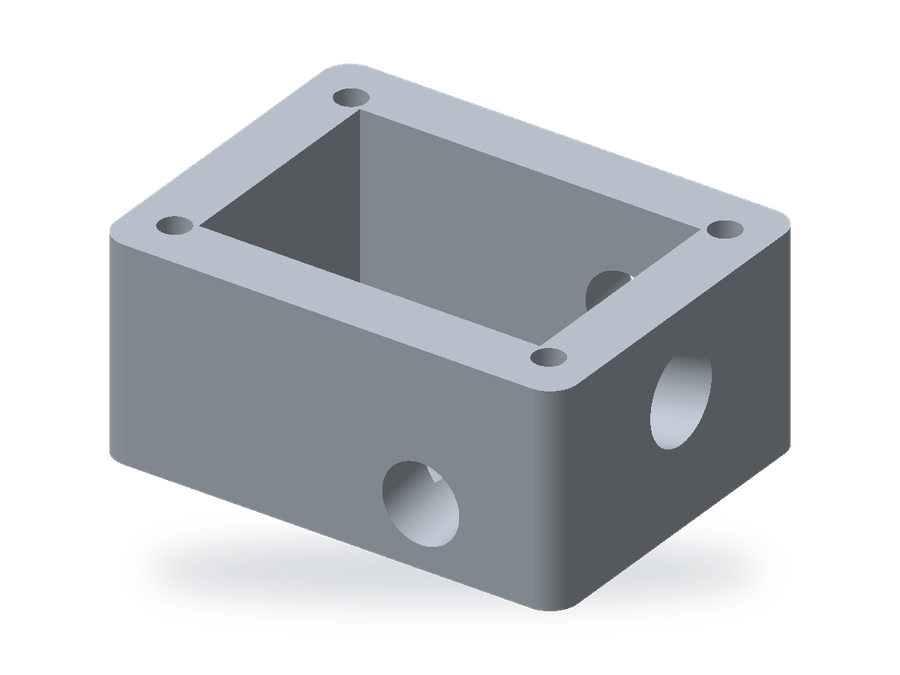

Pockets, side openings and mounting interfaces on different faces.
Discuss: Face relationships · access · sealing or mating features
Inclined mounting faces and hole patterns that need an agreed reference.
Discuss: Angle definition · hole positions · datum faces
Blocks with features approached from several directions.
Discuss: Port geometry · intersections · burr acceptance

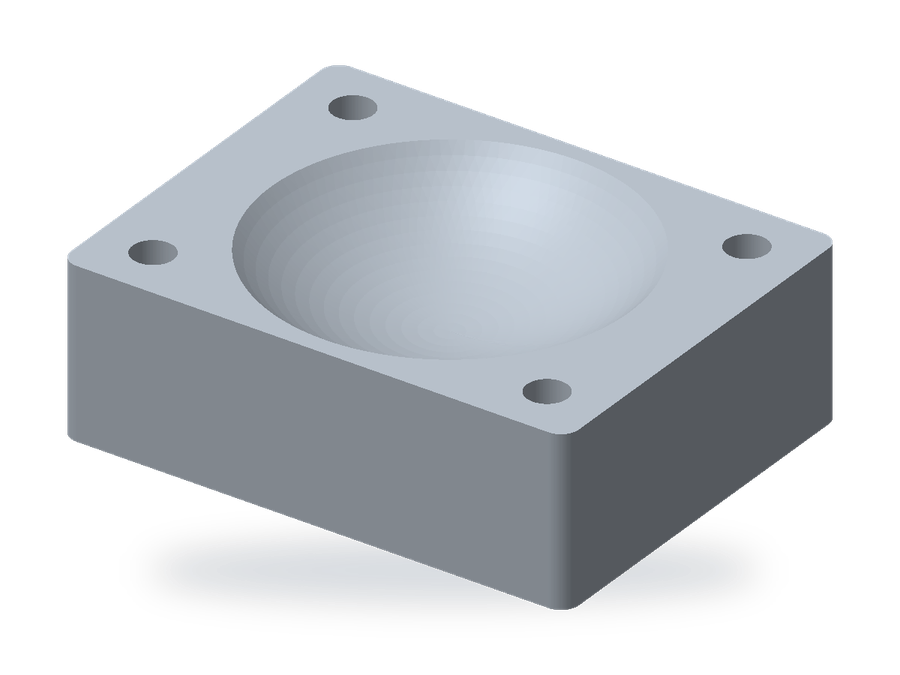

Recessed or sculpted surfaces combined with locating features.
Discuss: Profile definition · surface texture · finishing allowance

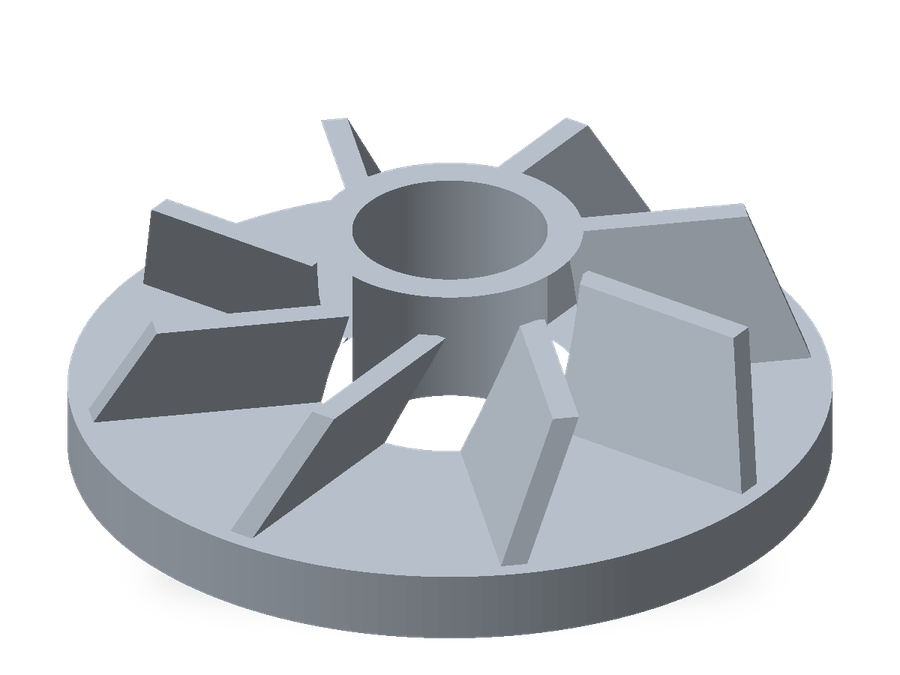

Open vanes and changing surfaces for a geometry-led discussion.
Discuss: Tool clearance · surface continuity · inspection access

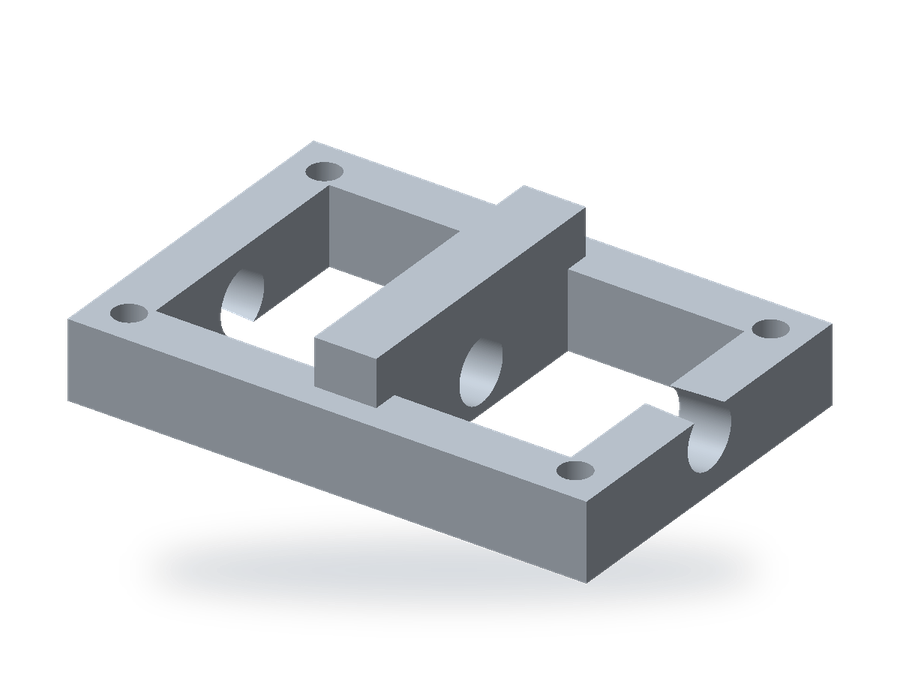

Open frames with ribs, side features and localized mounting areas.
Discuss: Support strategy · distortion · final feature locations
Show the complete geometry around each feature. A reachable cutting edge does not mean the holder, spindle and fixtures also have clearance.[3]
Discuss clamping faces, sacrificial stock or tabs early. Protect functional surfaces and identify which areas need a later setup.
Reach, cutter length and corner size interact. Longer tool overhang can make vibration more difficult to control; flag deep details for review.[4]
Identify walls that can move during clamping or cutting. Discuss support and the machining sequence rather than relying on a generic minimum wall value.[5]
Five axes do not remove physical access limits. Enclosed channels, trapped features or some undercuts can require another process or an agreed design change.[3]
Mark the functional contours, sealing lands and contact areas. Agree what may be polished or coated and how the final surfaces will be verified.
Proposed changes should be visible and approved. Keep design ownership, revision control and manufacturing responsibility clear.
| Material | What to specify | Request a quote |
|---|---|---|
| Aluminum Alloys | Alloy and temper, finish requirements and the final dimensions of mating surfaces. | |
| Stainless Steel | Grade, supplied condition, required surface finish and any passivation specification. | |
| Steel | Grade, hardness, heat-treatment sequence and any post-treatment machining requirements. | |
| Titanium Alloys | Grade, material traceability and critical surfaces or handling requirements. | |
| Brass | Alloy, any lead-content restrictions and the thread or sealing details. | |
| Copper | Grade, application requirements, finish and any appearance-sensitive surfaces. | |
| Inconel Alloys | Exact alloy, supplied condition and the full acceptance specification for review. | |
| PEEK | Exact grade, reinforcement or fillers and application-specific documentation. | |
| POM / Acetal | Grade, color, fillers if any and the working dimensions of sliding or mating features. | |
| Nylon | Grade, reinforcement and the condition in which dimensions must be inspected. | |
| Acrylic / PMMA | Grade, appearance requirements and whether optical finishing is part of the scope. |
Need a different grade? Include the exact specification and required documentation. Substitutions require your approval.
| Requirement | What to include |
|---|---|
| Datums & feature relationships | Identify the reference faces and axes. Mark the position, angle or alignment that matters to the assembly. |
| Surface profile | Identify the CAD revision, controlled surfaces, profile tolerance and datum reference. Keep cosmetic appearance separate from geometry acceptance. |
| Critical sizes & fits | State the individual limits or fits for holes, seats and mating features. Include the units and drawing standard used. |
| Surface texture & edges | Identify where roughness, lay direction, visible tool marks or edge breaks matter. Specify permitted deburring and polishing. |
| Part size & accessibility | Provide the complete envelope and all recesses or overhangs. Part size alone does not establish clearance through the machining motion. |
| Condition at inspection | Agree whether dimensions apply before or after coating, heat treatment or other secondary processes. Define the final inspection condition. |
Inquiry preference: Not specified
A finishing process is not a substitute for a surface specification. Identify the areas that need a particular roughness or final dimension.[4]
Link the acceptance checks to the drawing revision and agreed datums. Separate size, position, profile and surface-texture requirements.
Discuss whether a coordinate measurement, a functional gauge or another suitable method is needed. Confirm access, coverage and any required report format.
Where first-part approval is required, define what needs approval and what happens before the remaining quantity is produced.
Agree material records, inspection results, finishing documentation and part identification as part of the supply scope.
Structural, mounting and contoured geometry. Specify the part-specific traceability and qualification requirements.
Application RequirementsEquipment housings and precision interfaces. State the material, cleanliness and documentation requirements.
Application RequirementsDevelopment housings, fixtures and complex mounting parts. Identify the functional interfaces and approval needs.
Application RequirementsShare the project-specific qualification and information-handling requirements before exchanging sensitive files.
Application RequirementsEquipment frames, housings and precision interfaces. Discuss final geometry, surface condition and cleanliness.
Application RequirementsApplication examples do not establish sector approval or certification. Specialized requirements are reviewed before a project is accepted.
Start with the functional questions the sample needs to answer. Identify any difference between prototype and production material, finish or acceptance.
Use an initial batch to confirm the manufacturing scope, inspection plan and approval points before expanding the order.
Reference the approved drawing, specification and any agreed retained fixtures. Reconfirm changes rather than assuming the previous quote still applies.
Ask us to explain the proposed process and its alternatives. If straightforward milling fits the part, the discussion should make that clear rather than add complexity without a reason.
Ask what toolpath preparation, machine verification and first-part work are covered in the quote.
Clarify the clamping approach, any dedicated fixtures and operations needed to complete hidden or clamped faces.
Separate the functional surface requirements from cosmetic expectations. Mark where secondary processes are required.
Include inspection coverage, documentation, packing, destination and the requested delivery date in the discussion.
“My father built this business through trade shows and long-standing customers. I want to carry that experience forward—and make it easier for you to understand who is making your parts.”
Our manufacturing roots are in China, with multiple factories and a wider circle of manufacturing partners. The aim is straightforward: explain what fits our capabilities and be open about the route when a project needs something different.
Discuss a direct manufacturing scope when the part fits.
Agree the partner work, communication and responsibilities in advance.
Where appropriate, connect with a suitable partner and discuss the work directly.
Send the CAD model, matching drawing, material grade, quantity and target date. Flag critical surfaces and confidentiality needs.
Discuss access, workholding, specification, inspection and whether our factories or an agreed partner should handle the work.
Confirm the quote, manufacturing responsibilities and any first-part or sample approval before the agreed production stage.
Complete the agreed acceptance checks, documentation and packing. Keep the order, revision and delivered parts traceable to one another.
In 3+2 machining, the rotary axes position the part or tool and remain fixed during each cutting operation. Simultaneous five-axis machining allows orientation to change during cutting. The drawing and access requirements determine which approach is appropriate.[2]
Not necessarily. Some multi-face parts can be made using conventional milling and additional setups. Share the complete geometry and critical requirements; ask for the reasoning behind the proposed route rather than choosing by axis count alone.
No blanket promise should be made. Clamped faces, inaccessible features and secondary processes may still require another operation. The proposed setup plan should explain how the complete part will be finished.
We confirm achievable tolerances for the specific geometry, material, datum structure and inspection method. Mark critical sizes, positions and surface profiles on your drawing. This page does not publish a universal tolerance or guaranteed machining envelope.
The material section covers metals and engineering plastics for discussion. Specify the exact alloy or resin grade, condition and any required records. Sourcing, the manufacturing route and final acceptance are confirmed for the part rather than assumed from a material name.
They need a geometry review. Tool, holder, fixture and machine clearance all matter; adding rotary motion does not make every enclosed or obstructed feature accessible. We can discuss another process or an approved design change where necessary.[3]
A 3D CAD model and matching drawing are a useful starting point. Add the revision, units, material grade, quantity, critical features, finish, inspection records and target delivery. A preliminary non-sensitive description is also welcome.
Include both the initial quantity and expected repeat quantities in your inquiry. We will discuss the route and approval needs for that scope. Minimum quantities, pricing and delivery are confirmed in the quotation, not assumed from a general website claim.
Tell us which records you require before ordering. Agree the measurement coverage, report format, material documentation and any finishing records in the quote. Do not assume a particular certification or report is automatically included.
When the work fits our factories, we can discuss direct manufacturing. If another specialist is a better fit, we can coordinate an agreed partner route or introduce you for direct contact. The aim is to be clear about who makes the part and who is responsible.
Yes. Start with a non-sensitive description and state any confidentiality or transfer requirements. Agree the terms and an appropriate transfer channel before sharing confidential or restricted files.
Compare the full scope: programming, setups, fixtures, material, critical features, verification, inspection and finishing. A lower hourly rate or fewer nominal setups does not by itself define the complete order cost.
Not ready to share confidential files? Start with a non-sensitive project description and state any confidentiality requirements.
The process descriptions above are general guidance. These sources are not evidence of vetcnc equipment, certifications, tolerances or completed work. Manufacturing capabilities and acceptance are confirmed for each project.
