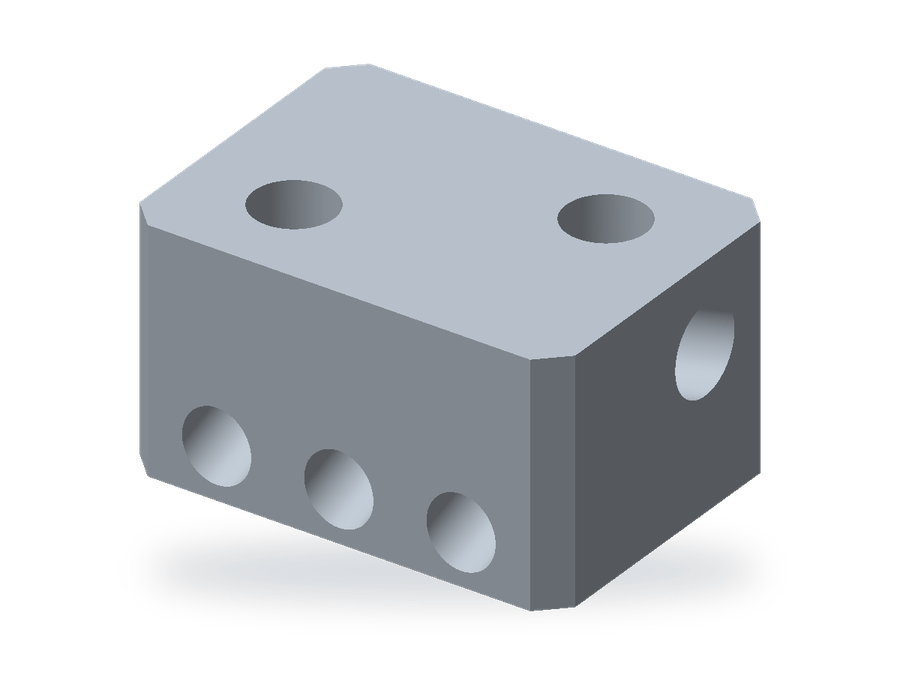

Multi-port machined blocks
Show intersecting passages, threads and mounting holes. Identify internal burr restrictions, cleaning requirements and any separate leak-test specification.
Which brass grade is on your drawing?
C36000: free-cutting brass
C36000 is a leaded, free-cutting brass used for machined components. Its lead content supports machinability; it should not be specified as a lead-free alloy. [1]
- Material designation
- Leaded free-cutting brass
- Include with your drawing
- State the product standard, stock form and temper. Identify any lead-content or end-use restrictions before this grade is approved.
CW614N: CuZn39Pb3
CW614N is designated CuZn39Pb3 in Wieland’s brass range. It is a lead-containing copper-zinc alloy; use the full designation rather than assuming a match to a different national grade. [2]
- Material designation
- CuZn39Pb3
- Include with your drawing
- Provide the material standard and supplied condition. Treat C36000 or a locally available grade as a proposed alternative that needs your written approval before machining starts.
CW617N: CuZn40Pb2
CW617N is designated CuZn40Pb2. It is a separate specification from CW614N, even when the finished components look similar. [2]
- Material designation
- CuZn40Pb2
- Include with your drawing
- Confirm whether the starting material is bar or a preformed blank. Include the condition, material record and any additional operations in the order review.
C69300: silicon brass
C69300 is a silicon-containing brass marketed by Wieland Chase as a lead-free alternative, with dezincification resistance. These material characteristics do not by themselves establish approval of a finished component. [3]
- Material designation
- Copper-zinc-silicon brass
- Include with your drawing
- Supply the accepted product standard, lead requirement and intended use. Confirm stock availability, certification and machining scope before ordering.
These grades are comparison points, not a confirmed stock list. For another Chinese, EN, ASTM or customer specification, provide the exact designation and required edition. A proposed alternative needs your approval.
| Grade | Lead (wt%) C36000 composition | Processing role |
|---|---|---|
| C36000 | 2.5–3.0 | Free-cutting machining brass |
| CW614N / CuZn39Pb3 | 2.5–3.5 | Machining; extensive cutting after hot forming |
| CW617N / CuZn40Pb2 | 1.6–2.5 | Hot forming followed by machining |
| C69300 silicon brass | ≤0.09 | Low-lead machining and forging route |
Composition: Wieland Chase and Wieland Z33/Z41 data. C69300 contains 2.7–3.4 wt% silicon. We use the specified product standard and stock condition to select the supply route; national grade designations are not automatic equivalents.
Lead content and water-contact requirements
Lead-restricted parts
Lead-restricted parts need a defined maximum lead content, governing requirement and supporting evidence. C36000, CW614N and CW617N are leaded grades.[1][2]
Water and fluid-contact components
Identify the medium, temperature, contact conditions and target-market requirements. A request for dezincification resistance, a material chemistry limit and an approval for the finished product are different requirements; list each one that applies.
Turning and milling brass to finished size
CNC turning for threads and bores
For adapters, sleeves and pins, define the part axis, shoulder locations and full thread lengths. Include any milling, cross-drilling or deburring needed after the main turning operations.
View the Machining ServiceCNC milling for blocks and mounting features
Dimension pockets, flat faces and hole patterns from the datums that locate the part. Show the features that need a common setup and the corners that may be modified after review.
View the Machining ServiceCombined machining for complete components
A turned body with flats, angled holes or an offset port may need more than one process. The quote should cover the finished component rather than leave secondary work implicit.
View the Machining ServiceThreads, seals and fitted surfaces
Threaded connections
Name the complete thread specification, class and full thread depth. Identify where the joint seals and whether assembly checks take place after plating.
Bushings, spacers and locating fits
Provide mating dimensions, the intended fit and the surface condition at assembly. Identify surfaces that must be protected from polishing, plating or handling marks.
Sealing faces and internal passages
Mark the sealing land, port intersections and acceptable internal edge condition. Include any cleaning, leak-test method or acceptance limit that must be quoted.
Electrical and visible surfaces
Specify the contact or appearance requirement — mating face, electrical contact area or visible surface — with the acceptance method for each. Include the coating system, masked areas, reference sample and inspection criteria where they apply.
No assembly requirement selected.
Brass tolerances before and after plating
| Feature | Specification | Acceptance condition | Verification |
|---|---|---|---|
| Threads | Standard/class; pitch/size; full thread length | Final surface condition; specified acceptance stage | Gauge or specified inspection method |
| Bores and outside diameters | Size limits; fit; datums; masked surfaces | After drawing-specified operations | Finished-size measurements |
| Sealing faces and grooves | Roughness parameter/units; groove geometry; edge breaks | Specified functional test requirements | Separate dimensions, surface checks and leak testing |
| Plated surfaces | Coating; thickness limits; significant surfaces; masking; coverage | Finished mating dimensions | Coating-thickness records; fit and appearance checks |
| Flatness and feature position | Datums; controlled faces/holes | Defined support and sampling plan | Specified dimensions reported |
Specify tolerances for the delivered part, including coating thickness and the dimensions that must pass after plating. We will confirm achievable limits for the geometry and finishing process.
Finishing options for machined brass
As-machined brass
Define allowable tool marks, edge breaks and cleanliness. Protect the surfaces that locate or seal the assembly; appearance and dimensional requirements should be stated separately.
Include packing requirements for bare parts.
Polished or brushed surfaces
Identify visible faces, the direction of brushing and an approved appearance reference. Keep edges, lettering, sealing faces and fitted diameters within their agreed limits.
Approve appearance with a sample where necessary.
Nickel-plated brass
Nickel plating needs a specified process, thickness, masking and inspection scope, including the surfaces to be measured.
Confirm final fits and thread checks after the finish.
Tin or other specified plating
For an electrical-contact or other functional coating, provide the approved process and acceptance criteria. Include underlayers, masked areas and required records in the technical review.
Availability and process responsibility are confirmed with the quote.
Brass can discolor in air. Plating is one possible way to protect appearance, but finish selection also needs to account for the part’s function, dimensions and permitted materials. [4]
Details to check on your brass part drawing
Thread length and hole depth
Show full thread length separately from drill depth. For blind holes, identify the usable depth, end clearance and any permitted relief. Mark whether the specification applies before or after finishing.
Small passages and intersecting bores
Identify the smallest openings and internal intersections. Include the edges that cannot retain burrs, how cleanliness will be assessed and any feature that needs a dedicated checking method.
Thin walls and clamping faces
Mark the walls and surfaces that are sensitive to deformation or marking. State where the part can be held and whether any dimensions apply in a free or assembled condition.
Inserts and joining operations
For an insert, define the receiving material, installation method and retention requirements. For soldered, brazed or other joined components, identify the approved process and who performs it.
Which drawing details need a closer review?
No review topics selected.
Material records and finished-part inspection
Match the material to the approved designation
Request the certificate or material record required by your order. Link it to the supplied stock and grade; a general alloy datasheet is not evidence of the material used in your batch.
Inspect finished threads and fits
Identify the characteristics to be reported, gauges or other methods, and whether the checks follow plating. Material records, dimension reports and coating records serve different purposes.
Agree separate tests before production
A chemistry limit, coating requirement or leak test needs a defined method and acceptance criteria. Include the required documents and approvals in the quote rather than add them after the parts are finished.
Keep finished surfaces protected in transit
Specify separation of parts, thread protection, packing cleanliness and marking restrictions. Retain the batch reference so any delivery discrepancy can be checked against the approved order.
Pricing prototypes and repeat brass batches
Stock, grade and blank size
Quote the exact brass and stock condition alongside the geometry. Ask whether another blank size or approved grade could change the cost, but keep alternatives separate from the specified offer.
Secondary work and acceptance checks
Small passages, special threads, cosmetic polishing, plating and additional inspection can change the scope. A comparable quote should identify which of these operations and records are included.
Prototype and repeat quantities
List quantities separately for samples, a pilot run and regular orders. Confirm setup, tooling, finishing and inspection charges, along with the conditions for repeat batches.
Brass order approval and delivery
Complete-part requirements
Keep the grade, threads, finish and required records with the drawing.
Manufacturing responsibilities
Agree material sourcing, secondary processes and acceptance checks.
Quote and sample approval
Confirm revision, sample plan, price and delivery terms.
Parts and records
Check the batch against the agreement and retain approved changes for repeat orders.
Questions about brass CNC machining
Which brass grades can I request?
Send the grade on your drawing. This page compares C36000, CW614N, CW617N and C69300; we then confirm availability, material condition and the proposed manufacturing route for the order.
Can you machine to a different national brass specification?
Include the exact specification and required edition. We can discuss a proposed alternative, but similar descriptions or appearance are not enough to approve a substitution. Any change needs your documented agreement.
Is C36000 lead-free brass?
No. C36000 is a leaded free-cutting brass. For a lead-restricted component, provide the material and evidence requirements so a suitable specification can be reviewed. [1]
Does choosing C69300 make the finished part approved for drinking water?
Drinking-water approval for a finished part follows the target market, service conditions and required qualification documents. Specify the target market, service conditions and required qualification documents for review.
Can you make threaded brass fittings and adapters?
Submit the full thread callout, drawing and sealing arrangement for review. Include any cross-holes, flats, internal edge requirements and checks after plating. Pressure or leak acceptance must be specified separately.
Will plating affect a close fit or thread?
Plating and the finished dimensions must be reviewed together. State the coating thickness, masked areas and whether the tolerance applies after finishing. The machining allowance and final checking method should be agreed before production.
Can I order a sample before a production batch?
Include prototype, pilot and production quantities in the inquiry. Ask for a quote that identifies sample approval, inspection and any remaining requirements before the full batch is released.
Which records can I request with the parts?
List the material evidence, batch identification, dimensional or thread report, coating record and additional tests you need. Scope, method and availability are confirmed in the quotation rather than assumed for every order.
Can I request custom brass inserts?
Send the insert drawing with the receiving material, installation method and retention requirements. Include any knurl, groove, thread and plating details. The geometry, manufacture and acceptance checks are reviewed for the actual application.
What files do you need for a brass machining quote?
Provide a 3D model and a dimensioned drawing where available, plus the grade, quantities, finish and acceptance requirements. The inquiry form accepts STEP, IGES, PDF, DWG, DXF, SLDPRT or a ZIP up to 20 MB. Agree confidentiality and the transfer method before sharing sensitive files.
Request a quote for brass machined parts
- Matching CAD model and dimensioned drawing
- Brass grade, standard, stock form and supplied condition
- Critical dimensions, threads, contact surfaces and roughness
- Finishing specification, masking and inspection records
- Sample and batch quantities, approvals and requested arrival date
Agree confidentiality and the transfer method before sharing sensitive or restricted files.
